Luthier's Bundle - Guitar Pickup Template (Set of 5)

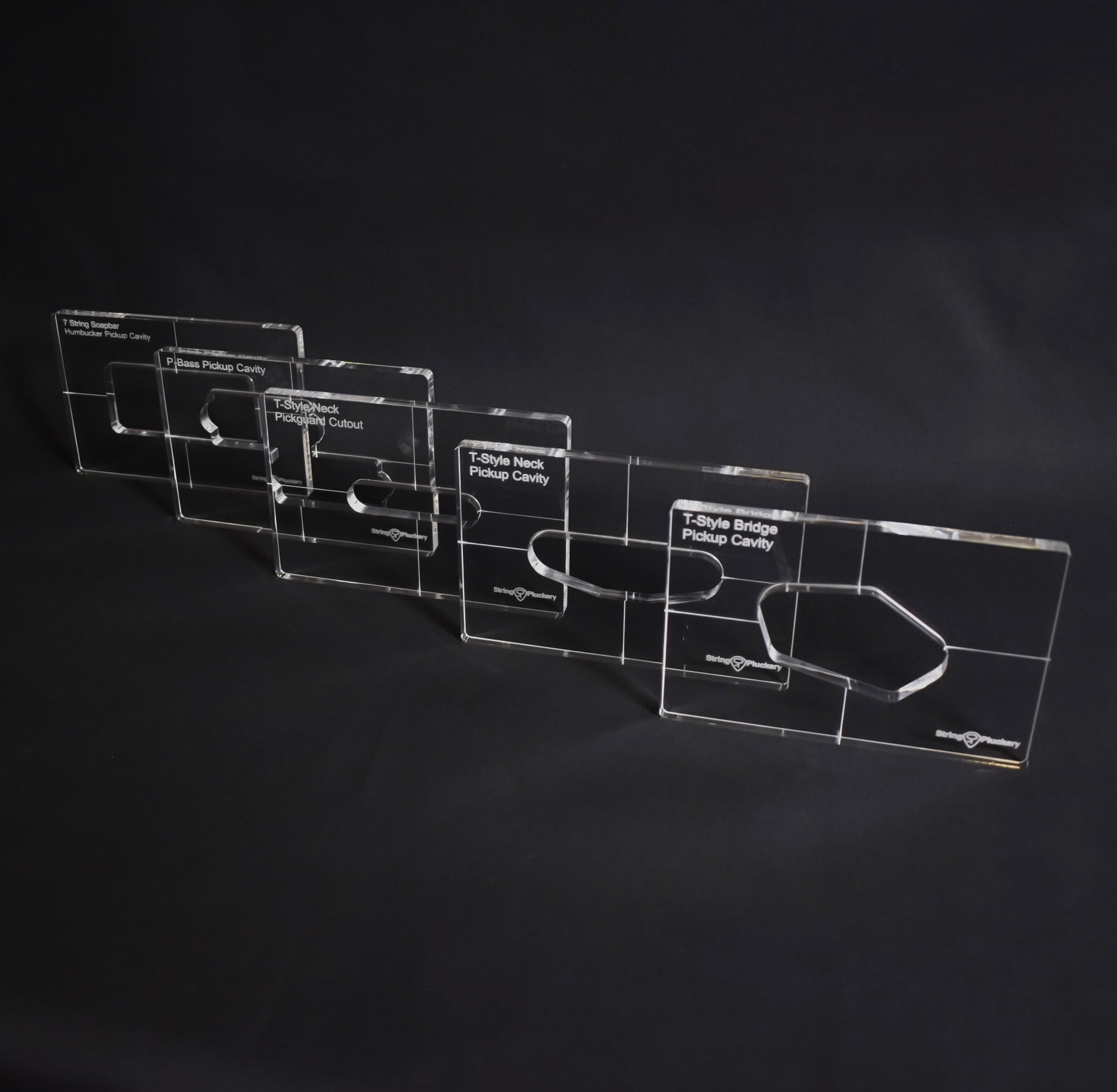

Choose any 5 pickup templates from our pickup collection and save.

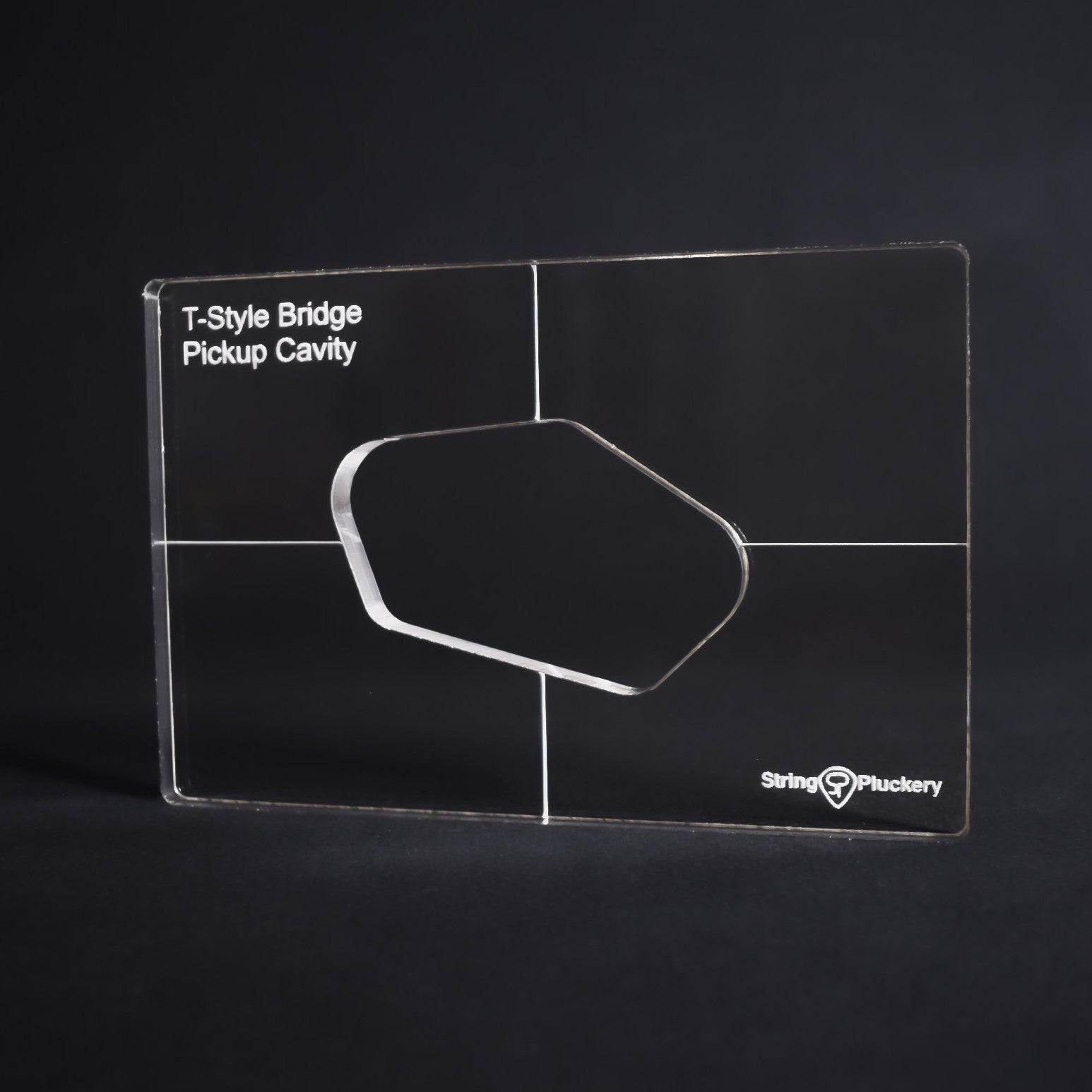

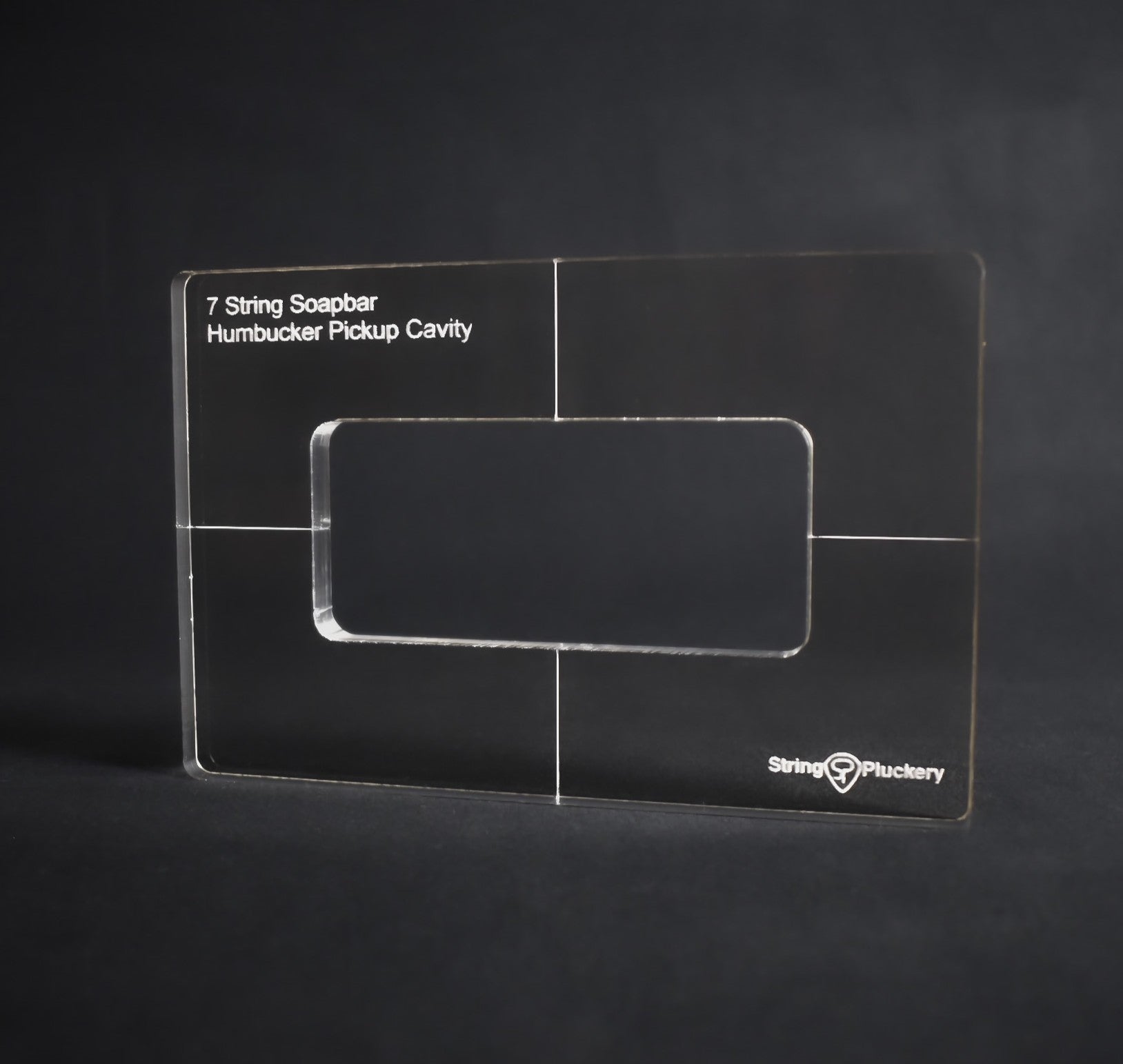

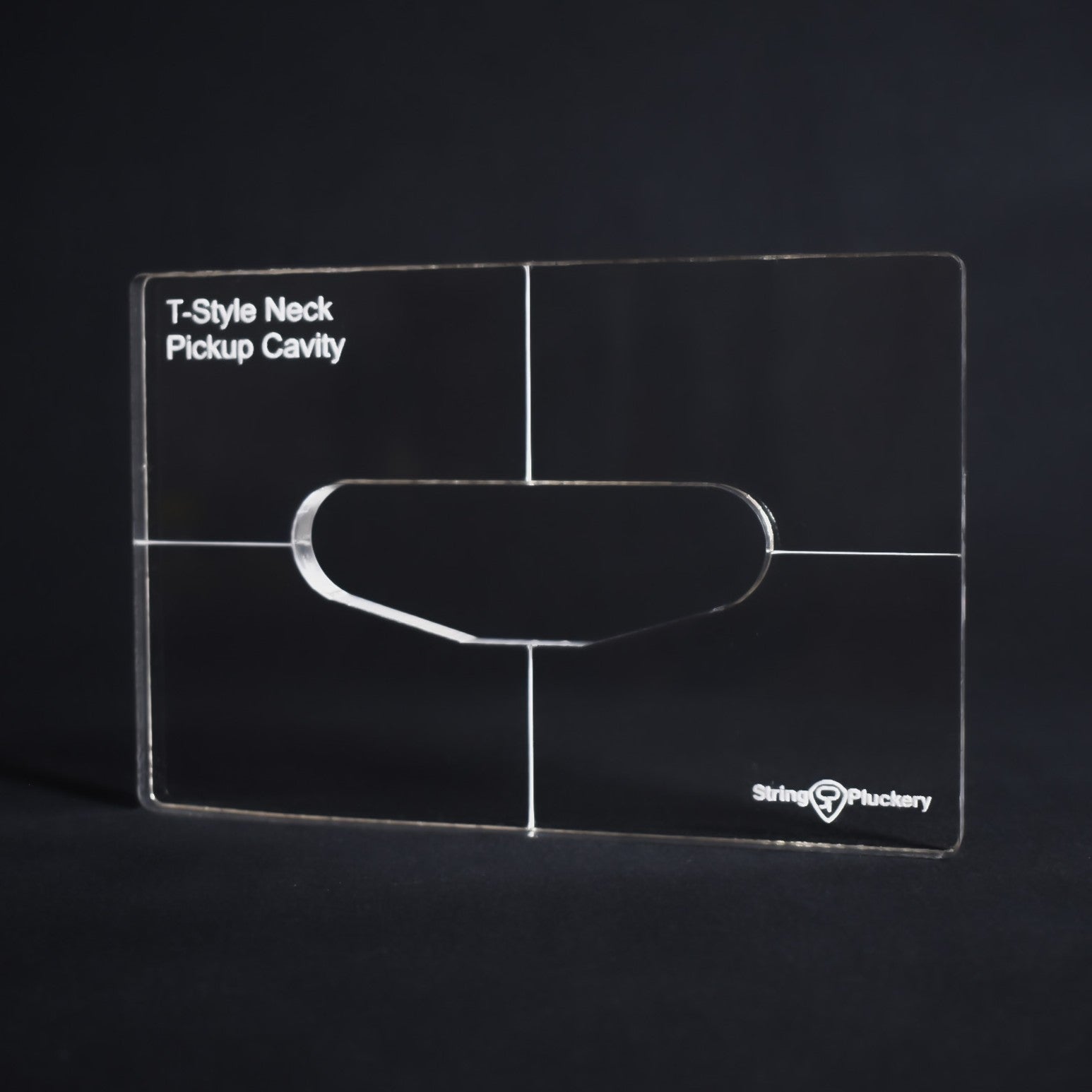

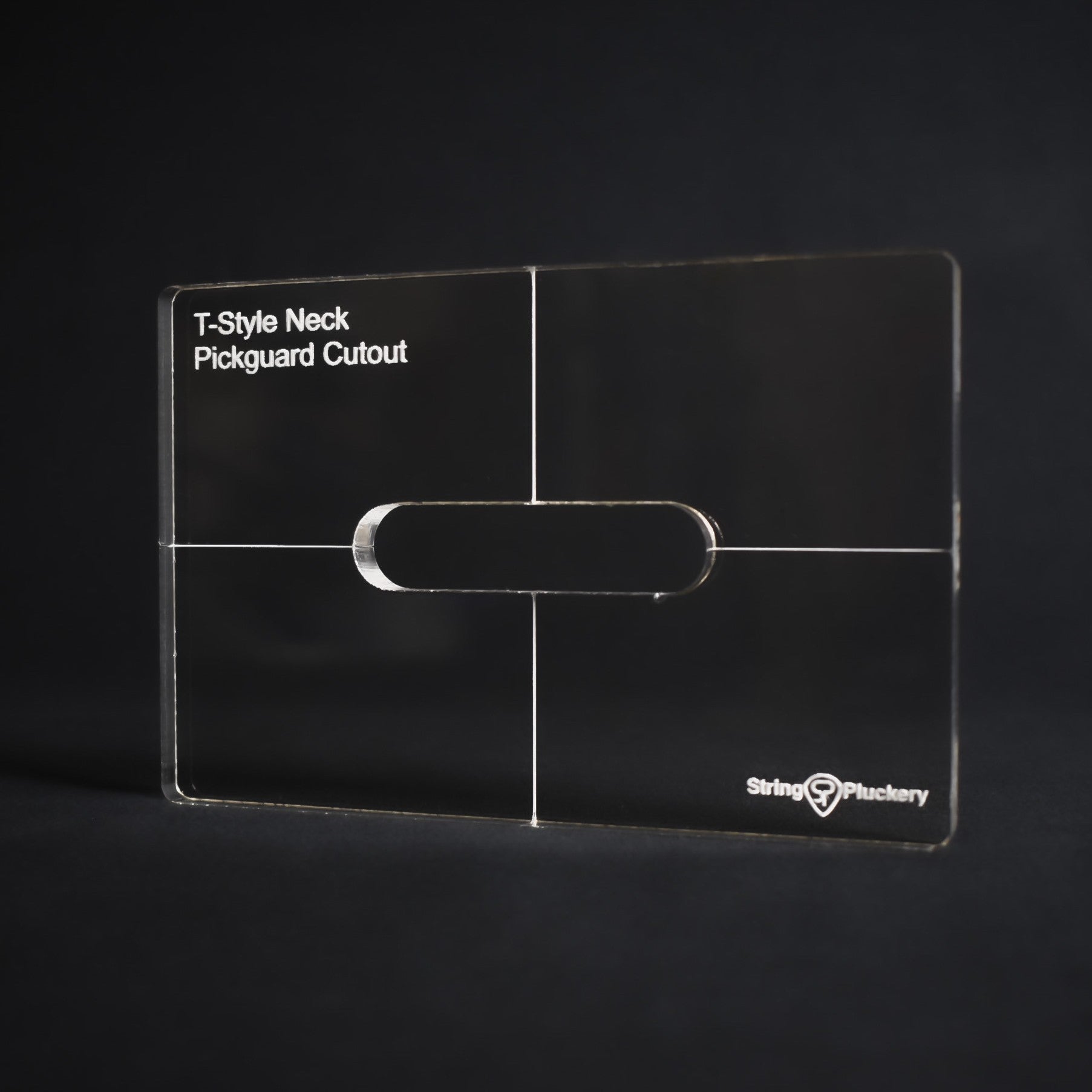

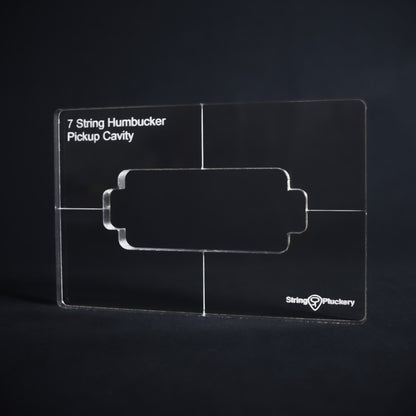

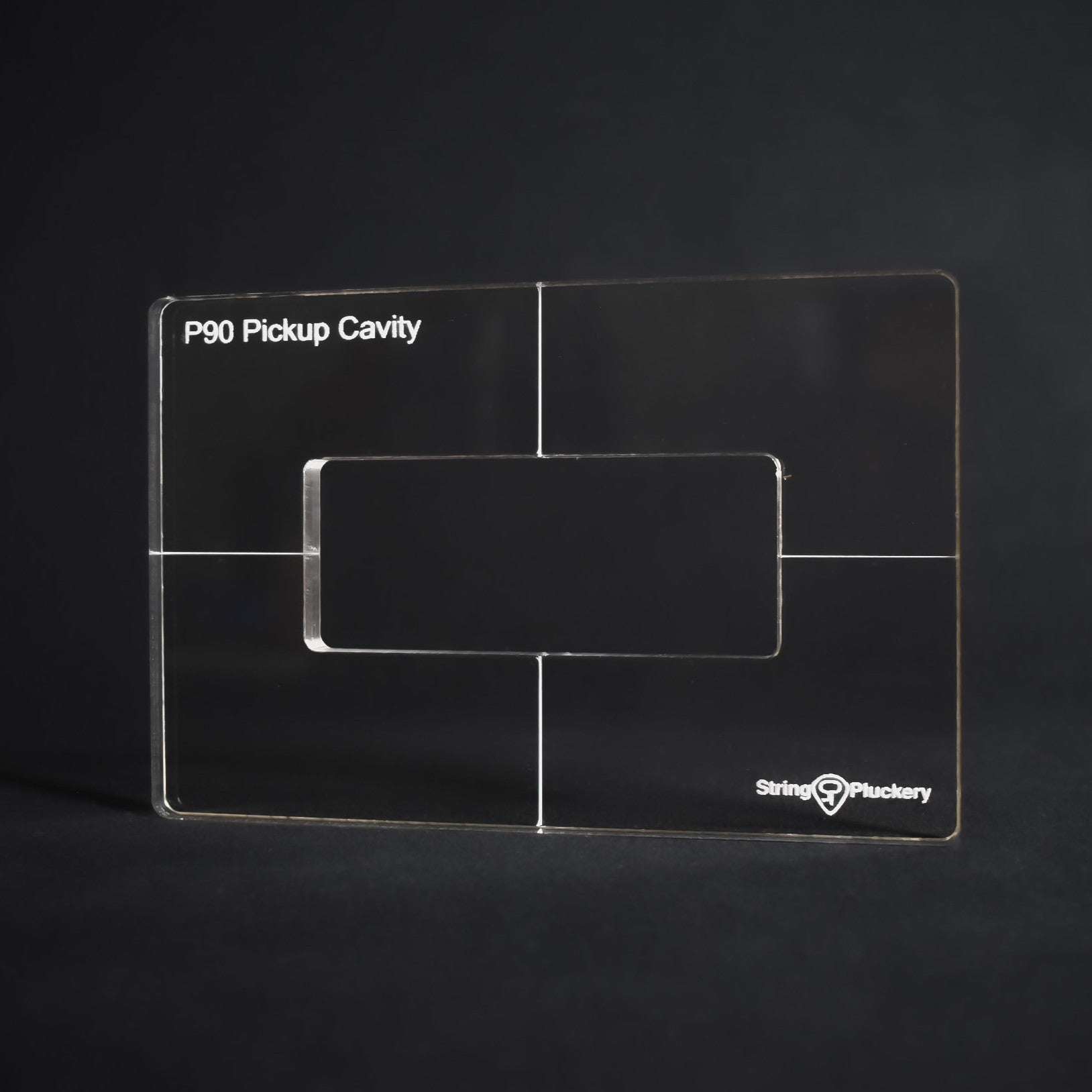

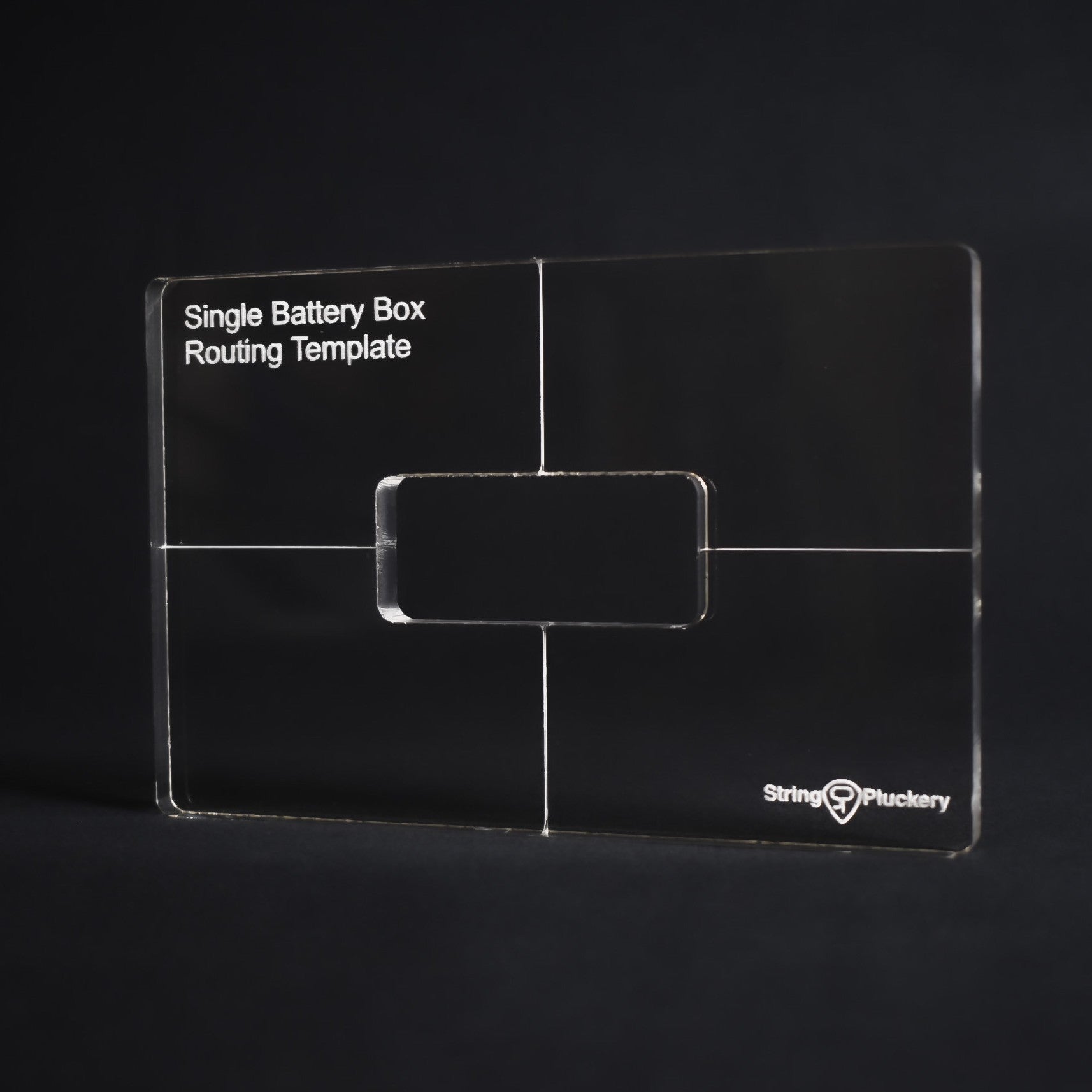

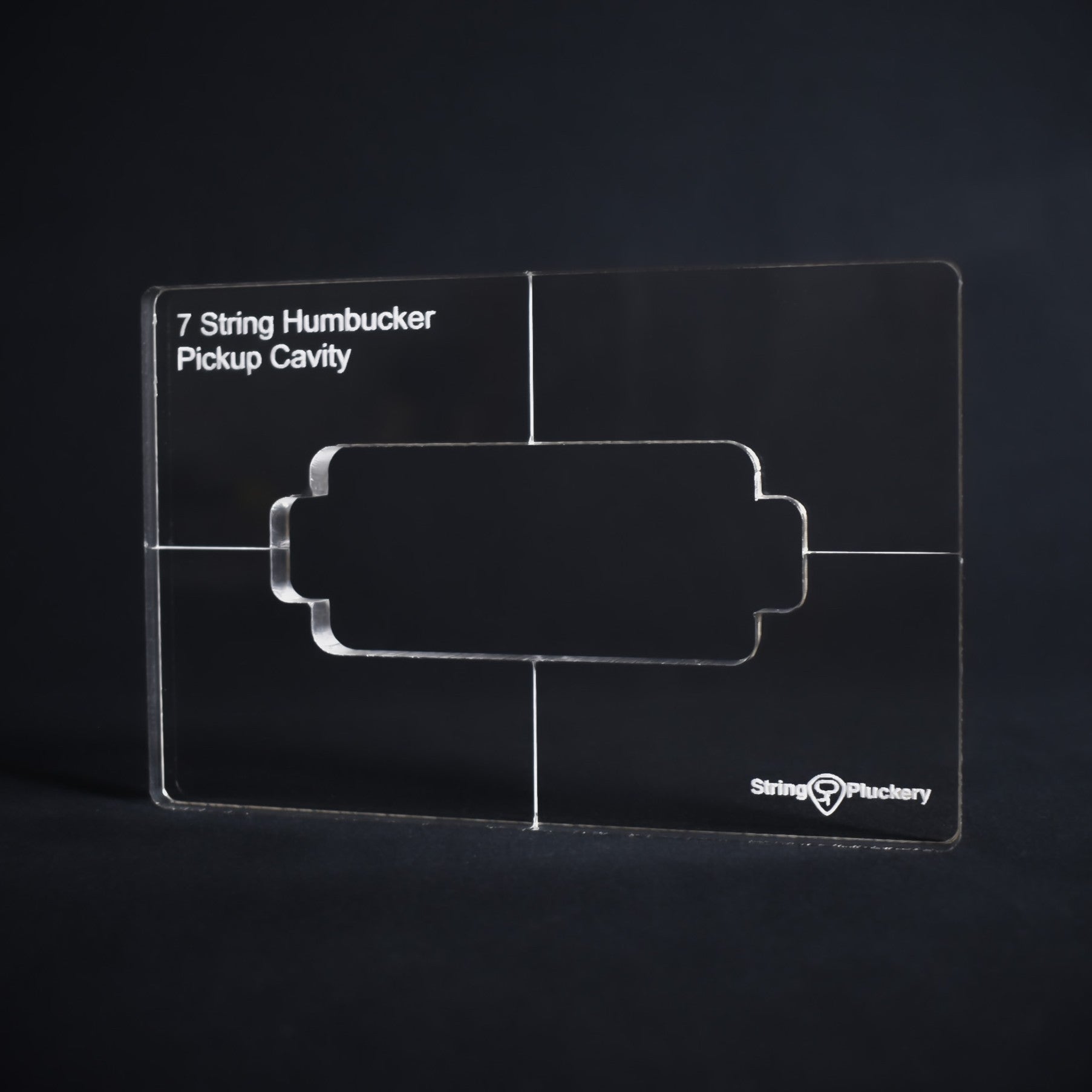

All String Pluckery pickup templates are laser cut from durable 3/8" clear cast acrylic for precision and longevity. Each template features engraved centerlines and reference markings to speed up layout and ensure clean, repeatable results. Whether you're building a custom guitar or refining your process, these templates help you work faster with greater accuracy.

Use the dropdown menus to select your 5 pickup templates before adding to cart.

Key Features

• Material: Cast Acrylic: Ensures longevity and precision.
• Thickness: 3/8”: Provides ample bearing contact surface during routing.

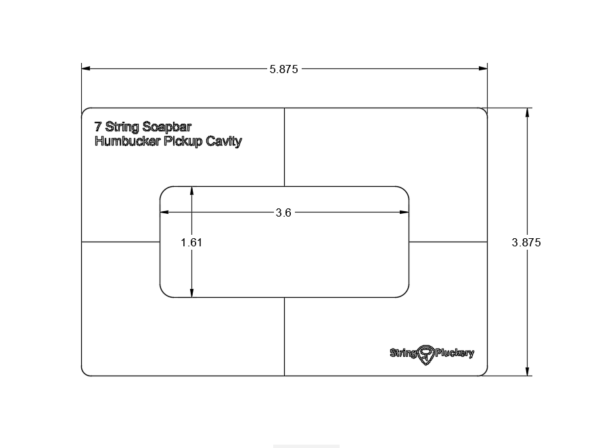

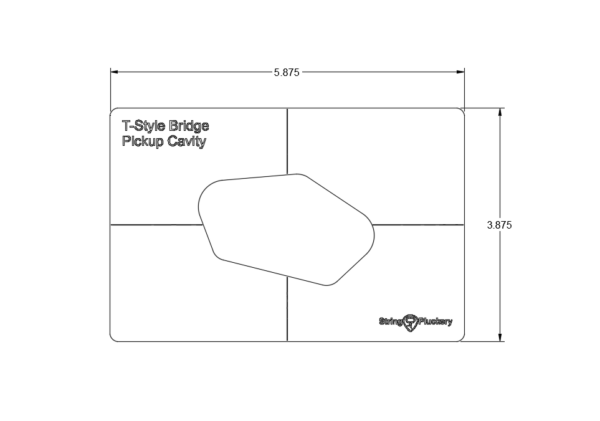

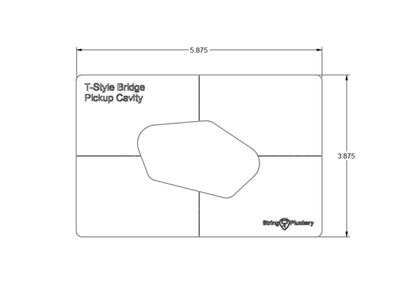

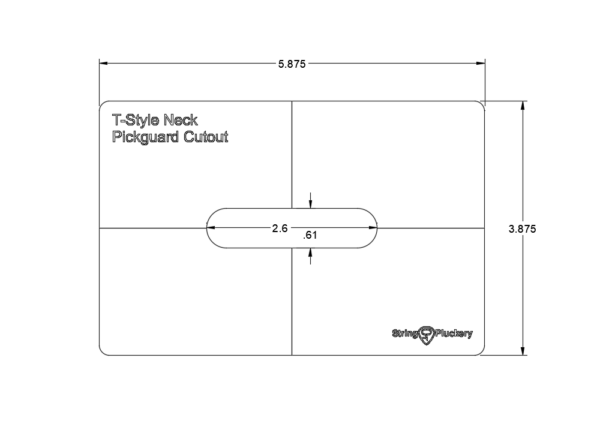

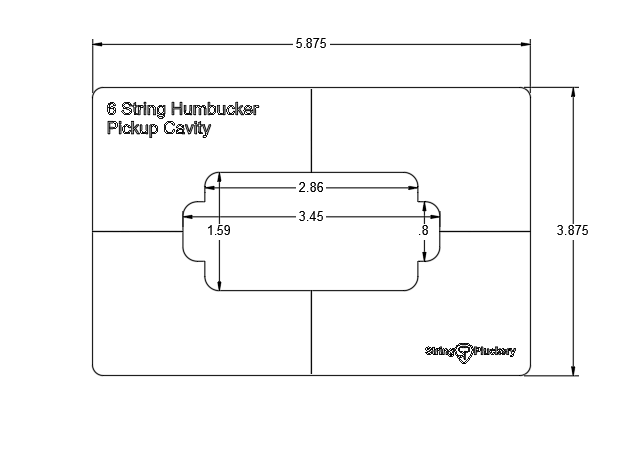

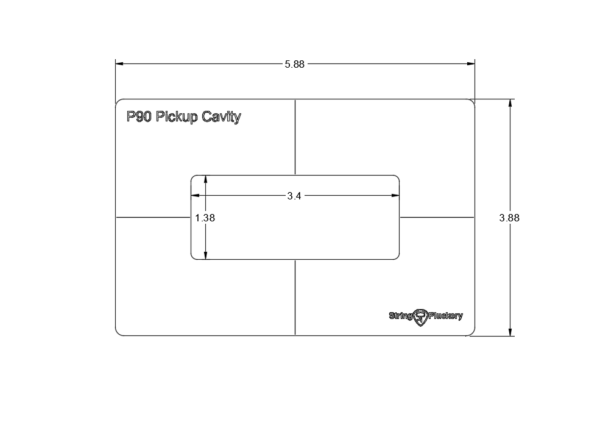

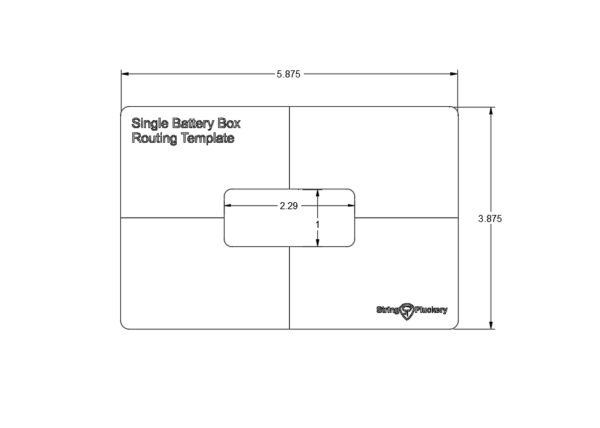

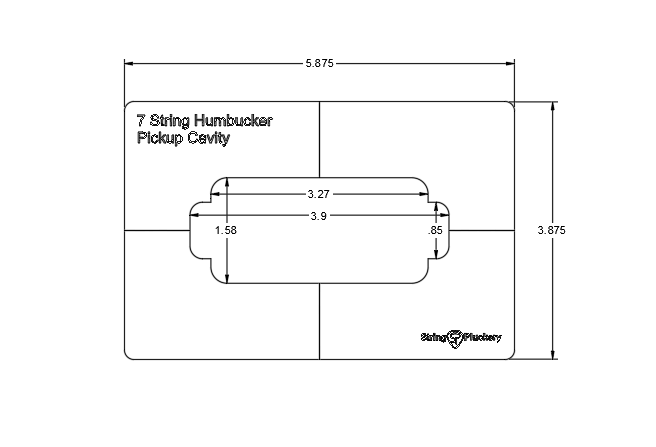

• Outer Template Dimensions: 5.875” x 3.875” (149.2mm x 98.4mm): Fits most standard guitar bodies.
• Laser-Engraved Centerlines: For easy and precise alignment.

Instructions for Using the Template

1. Align & Secure: Apply double-sided tape to the bottom of the template and align its centerlines with drawn centerlines on the guitar body.
2. Create a Starting Pocket: Remove the bulk of the material with a drill press or create a pilot hole large enough for the template routing bit to fit.
3. Make Shallow Passes: Lower the template routing bit into the pilot hole, making passes at incremental depths until reaching the desired depth.
